Inconel 600/601/625/800/825 Self Tapping Screw
Inconel 600 / 601 / 625 / 800 / 825 Self Tapping Screw Manufacturer in Vadodara, India
Nickel Alloy 625 Self Tapping Screw Manufacturer, Inconel 800 Self Tapping Screws, Inconel 2.4816 Self Tapping Screw Fastener, Inconel N06600 Self Tapping Screws, Incoloy 1.4876 Self Tapping Screw, UNS N06601 Self Tapping Screws Dealer, Alloy 600 Self Tapping Screws Manufacturer in Vadodara, India.
GreatBolt Industries is the leading manufacturer, exporter, and stockiest of Inconel 600/601/625/800/825 Self Tapping Screw. We have owed to use our capability to provide you with a range of products that are assured to provide the best utility. We develop our products on the basis of the latest trends and the demands in the market.
We provide a wide range of variety in Inconel N06600, N06601, N06625, N08800, N08810, N08811, N08825 Self Tapping Screw. These are nickel-chromium alloys that are made to resist high temperatures and prevent corrosion. Alloy 600 has founds its usage in applications that take place in cryogenic temperatures. 604 are mostly used in places where there are high chances of aqueous corrosion. Inconel 625 has the tendency to provide high strength and resistance from higher temperatures. Just like the 600, alloy 835 also exhibits resistance to aqueous corrosion.
Self-tapping screws are manufactured in a wide range of patterns of tips and threads. Moreover, they are able to be designed with any possible design of the screw head. The screw thread covers all the space from top to bottom and therefore they are also known as case-hardened screws. The ability of self-tapping is achieved through a cut which is made throughout the body of the screw in an even manner. This generates a flute and a similar cutting edge as that of a tap. Hence, this is what makes a self-tapping screw capable of tapping its own hole in a substrate such as metal. It is not necessary for all the self-tapping tips to be sharp. The tip can be blunt too and still it will be able to cut a hole of its own. Moreover, a blunt edge is very useful when it comes to packaging and handling of the screw.
Inconel® Alloy 601 Pan Philips Screw, Inconel N06625 Pan Slotted Screw, JIS NCF 600 Self Tapping Screws, Incoloy 800 Self Tapping Screw, Nickel Alloy 800 CSK Slotted Screws, DIN 2.4851 CSK Philips Screws, Inconel 825 Wood Screw Exporter in India.
Inconel 2.4856 CSK Philips Self Tapping Screw, Inconel 2.4858 Self Tapping Screw Stockholder, Alloy 800H Pan Slotted Self Tapping Screw, Inconel N08800 Wood Self Tapping Screws, Incoloy® Alloy N08825 Pan Philips Self Tapping Screw Supplier.
Blunt end screws may also find their usage in the applications where there is a need of reducing the clearance. Self-tapping screws can be broadly divided into two categories which are thread forming and thread cutting. The thread forming are the ones that displace the material without getting it removed. On the other hand, the ones that cut the surface sharply and remove the materials are known as self-cutting screws.
Inconel 600 / 601 / 625 / 800 / 825 Self Tapping Screws Types
Inconel 600/601/625/

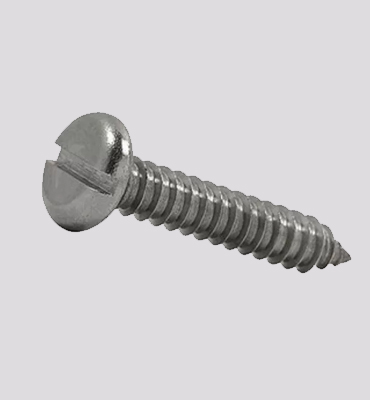

800/825 Pan Slotted Self Tapping Screw
Inconel 600/601/625/
800/825 CSK Slotted Self Tapping Screw
Inconel 600/601/625/

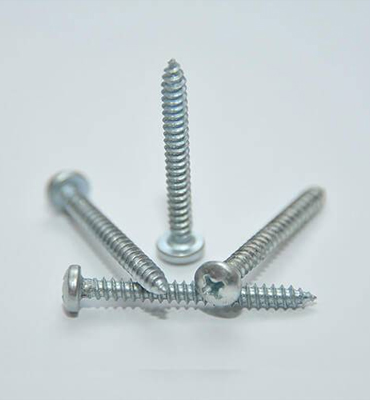

800/825 Pan Philips Self Tapping Screw
Inconel 600/601/625/

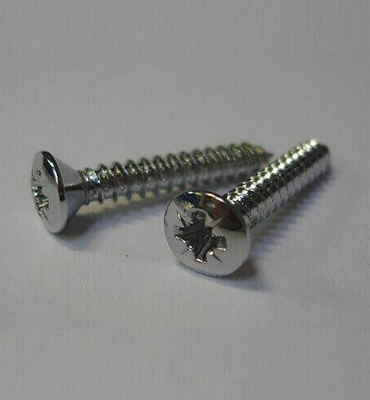

800/825 CSK Philips Self Tapping Screw
Inconel 600/601/625/

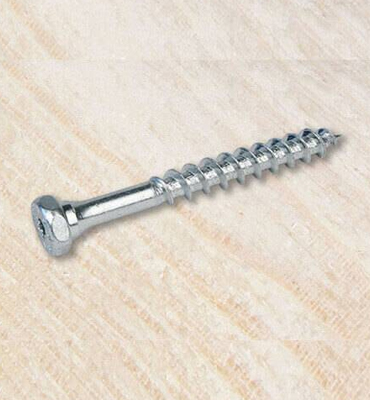

800/8255 K500 Wood Screw
Inconel 600/601/625/
800/825 Allen Head Self Tapping Screw
Inconel 600/601/625/
800/825 Button Head Self Tapping Screw
Specification of Inconel 600 / 601 / 625 / 800 / 825 Self Tapping Screw
| Standard : | ASTM F 467 / ASME SF 467 |
| Dimension : | ASTM, DIN, BS, GB, IS and all International Standards |
| Length : | 3 mm to 200 mm |
| Self Tapping Screw Size : | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Heat Treatment : | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |
| Type : | Pan Slotted, CSK Slotted, Pan Philips, CSK Philips, Wood Screw etc. |
Other Properties of Inconel 600 / 601 / 625 / 800 / 825 Self Tapping Screw
Equivalent Grades for Inconel 600 / 601 / 625 / 800 / 825 Self Tapping Screw
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe | - |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe | - |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | - |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Alloy 600 / 601 / 625 / 800 / 825 Self Tapping Screw Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 | - | - |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 | - | - |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 | - | - |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
Mechanical Properties of Inconel 600 / 601 / 625 / 800 / 825 Self Tapping Screw
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40% |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30% |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5% |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30% |
| 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30% |
People also search for DIN 2.4816 / 2.4856 / 1.4876 / 2.4858 Self Tapping Screw
Inconel alloy 625 self tapping screw manufacturer in maharashtra, inconel 600 pan slotted self tapping screws, inconel 825 csk philips self tapping screw, inconel 2.4816 wood screw self tapping screw, inconel 625 csk slotted self tapping screw, din 2.4851 dome head self-tapping screw, inconel n08810 self tapping screw with metric fine pitch, inconel 625 self tapping screws price, inconel n06600 wood screw self tapping screw, inconel 800h self tapping screws suppliers in india, inconel 825 self tapping screws distributors, inconel 601 pan philips self tapping screw, incoloy n08811 self tapping screws suppliers in mumbai, a wide range of the inconel n08825 self tapping screws price list, alloy 825 self tapping screws dealer, nickel alloy 825 self tapping screws exporter, inconel alloy 2.4816 flange head self-tapping screw, astm f467 alloy 600 flat head self-drilling screw, inconel 2.4858 self tapping screws suppiler in india, nickel alloy 625 self tapping screws supplier, inconel din 1.4876 pan philips self tapping screw, incoloy 800 csk slotted self tapping screws, incoloy 800 socket head self-tapping screws, uns n06625 self tapping screws supplier in india.
Other Inconel 600 / 601 / 625 / 800 / 825 Self Tapping Screw Types
Flat Head Self-Drilling Screw, Socket Head Self-Tapping Screw, Pancake Head Self-Tapping Screw, Wafer Head Self-Tapping Screw, Hex Head Self-Tapping Screw, Pan Head Self-Tapping Screw, Square Head Self-Tapping Screw, Bugle Head Self-Tapping Screw, Allen Head Self-Tapping Screw, Dome Head Self-Tapping Screw, Flange Head Self-Tapping Screw, Socket Self-Tapping Screw, Truss Head Self-Tapping Screw, Countersunk Self-Drilling Screw, Button Head Self-Tapping Screw.
Quality Assurance of Inconel 600 / 601 / 625 / 800 / 825 Self Tapping Screws
Inconel 600 / 601 / 625 / 800 / 825 Self Tapping Screws are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
