SS 304/304L Washer
Stainless Steel 304 / 304L Washer Manufacturer in Vadodara, India
Stainless Steel 304 Washers, SS 304 Washer, Stainless Steel 304L Washers, SS 304L Washers, UNS S30400 Washers Dealer, SS 1.4301 Washer Fastener, Stainless Steel S30403 Washer, SS 304L Washers Manufacturer in Vadodara, India.

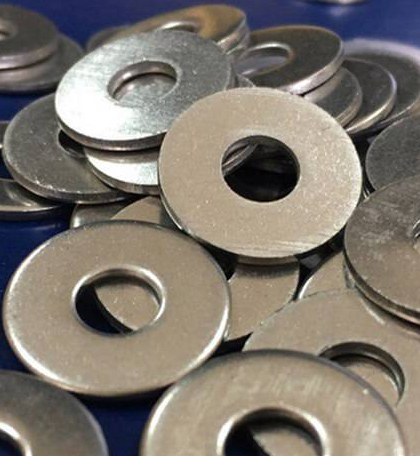

GreatBolt Industries is engaged in manufacturing and providing stainless steel 304/ 304l washer. These washers are available in different grades, sizes, and dimensions. Also it is made available to the clients in custom made specifications for satisfying application demands. The washers we provide are plain washer, star washer, spring washer, tooth washer, taper washer, tab washer and so on.
Stainless steel 304/ 304l washer offers to weld and forming properties. It also has great deep drawing quality. These kinds of washers are more used due to their high as well as low temperature resistance. Stainless steel 304 washers are usually used in different types of industries such as paper, food, refrigeration, and chemical industries.
However, stainless steel 304l washers have a great oxidation resistance because it of content of chromium. And it also delivers high ease of fabrication and good formability. These 304 grade washers are used where stress loads are extreme. Grade 304l is easily made in the hardened temper. Grade 304L is a combination of nitrogen and low carbon that enables it to meet the 304 grade mechanical properties.
The mechanical and physical properties of stainless steel washers are density, melting point, tensile strength, yield strength, and elongation.
Stainless steel 304/304Lwasher is used in several types of industries such as Furnaces (recuperators, fans, and burners, doors, piping), Industries processing food, Petrochemical and petroleum refineries for flares, recuperators, tube hangers, Power generation for tube hangers, coal burners, Cement plants- burners, burner shields, wind boxes feeding and Thermal process plants for annealing boxes and covers.
Stainless Steel 304 Plain Washer, SS 304 Spring Washers, Stainless Steel 304L Tooth Washer, DIN 1.4306 / 1.4307 Taper Washers, ASTM A193 SS Washer, Stainless Steel 304 Tab Washer, SUS 304 Star Washers Supplier in India.
Stainless Steel 304 Spring Washer, SS 304L Taper Washer, Stainless Steel 304L Washer Stockholder, SS 304L Plain Washers, Stainless Steel 304 Tab Washer Exporter.
The stainless steel provides various advantages such as excellent formability, good strength to weight proportion, ease of fabrication & cleaning, great toughness at cryogenic temperatures, and resistance to oxidation.
For severe oxidize conditions, the lower content of grade 304l is ideal due to its excellent immunity to intergranular oxidation.
The tests include mechanical testing & chemical analysis, corrosion testing, die penetrate test, chloride contamination test, micro structure analysis, positive material identification, hydro testing, surface roughness testing, etc. The documentation includes packaging lists, fumigation certificates, raw material test reports, and quality assurance plan, heat treatment charts, and many more.
Stainless Steel 304 / 304L Washers Types
Stainless Steel 304/
304L Plain Washer
Stainless Steel 304/
304L Spring Washer
Stainless Steel 304/
304L Tooth Washer
Stainless Steel 304/
304L Taper Washer
Stainless Steel 304/
304L Tab Washer
Stainless Steel 304/
304L Star Washer
Stainless Steel 304/
304L Flat Washer
Stainless Steel 304/
304L Dock Washer
Stainless Steel 304/
304L Split Washer
Stainless Steel 304/
304L Ogee Washer
Specification of SS 304 / 304L Washer
| Standard : | ASTM A /SA 193 / 194 |
| Dimension : | ASTM, DIN, BS, GB, IS and all International Standards |
| Length : | 3 mm to 200 mm |
| Washer Size : | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Heat Treatment: | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |
| Type : | Plain Washer, Spring Washer, Tooth Washer, Tapper Washer, Tab Washer, Star Washer etc. |
Other Properties of SS 304 / 304L Washer
Equivalent Grades for SS 304 / 304L Washer
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304 | S30400 | 1.4301 | Z7CN18-09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| SS 304L | S30403 | 1.4306 / 1.4307 | Z3CN18-10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 3304S11 | 03Х18Н11 |
SS 304 / 304L Washer Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 Max | 2 Max | 0.75 Max | 0.045 Max | 0.030 Max | 18 - 20 | - | 8 - 11 | - |
| SS 304L | 0.035 Max | 2 Max | 1.0 Max | 0.045 Max | 0.030 Max | 18 - 20 | - | 8 - 13 | - |
Mechanical Properties of SS 304 / 304L Washer
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
People also search for DIN 1.4301 / 1.4306 / 1.4307 Washer
A wide range of the stainless steel bs 304s31 washers price list, ss 304 washers, ss 304l washers, ss 304l washers price, stainless steel 304 washers distributors, stainless steel din 1.4301 plain washer, ss 304 spring washer, ss s30400 tooth washer, ss 304l washers exporter, ss 304l taper washers suppliers in india, astm a194 304 ss lock washer, ss 304 tab washers, ss s30403 star washer with metric fine pitch, din 1.4301 flat washer, ss 1.4306 fender washer, stainless steel 304 washer supplier in india, stainless steel 1.4307 belleville washer, ss 304 wave washer, ss 304 square dock washers supplier, ss 304l washers suppiler in india, stainless steel 304l washer manufacturer in india, 304 stainless steel washers dealer, ss 304 washers suppliers in mumbai, ss 304 sealing washer, ss 304l washer manufacturer in maharashtra, uns s30403 washers supplier in india.
Other Stainless Steel 304 / 304L Washer Types
USS flat washers, SAE flat washers, Structural washers F436, Fender washer, Lock washers, spring lock washer, High collar lock washer, Finishing washers, Dock washers, Square dock washer, Bonded sealing washers, Lock washers external tooth, Lock washers internal tooth, spherical washer, Belleville washers, Wave washers.
Quality Assurance of SS 304 / 304L Washers
Stainless Steel 304/304L Washers are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
