Stainless Steel 316Ti Forgings Manufacturer in Vadodara, India
SS 316Ti Forgings, Stainless Steel 316Ti Forgings, SS 1.4571 Forgings, UNS S31635 Forgings Dealer, SS 316Ti Forging, Stainless Steel S31635 Forgings Manufacture in Vadodara, India.
GreatBolt Industries is selling high-quality Stainless Steel 316Ti Forgings across the globe. We serve different forging types that are designed according to the standard specification.
A variety of forgings is available in different shapes such as blocks, discs, bars, circles and more. All these have similar properties that are inherited due to the use of stainless steel 316Ti. Also, molybdenum is added in the steel that makes the steel resistant to chloride attacks. Moreover, the presence of molybdenum offers good strength to steel. Apart from chloride resistance, stainless steel forgings are good for use in acidic environments. It is because it shows resistance to pitting as well. When using the forging in acids like hydrochloric, alkaline chlorides, formic, tartaric, and acetic and sulfates they are very effective.
However, the closed die forging process is preferred rather than open die forgings for stainless steel 316 Ti. The steel is heated for one hour at 1900-2100 degrees Fahrenheit. The desired thickness is achieved by performing quenching.
At 1950 degree Fahrenheit the stainless steel 316 Ti shows great resistance to corrosion. However, heat treating cannot be done to perform steel hardening. A process like turning, boring, drilling and more are performed on Stainless Steel 316 Ti Forgings to get machinability.
Different forging like impression die drop, compression, open die hammer, cold forging, press, upset, closed die, hot and roll forging is available. This guide is preferred by different industries like chemical, pulp and paper, rubber production, high-temperature equipment applications, textile bleaches and more. The temperature up to which safe scaling can be one is 1600 degrees F or 870 degrees C.
Stainless Steel 316Ti Chain Link, ASTM A193 SS Forgings, Stainless Steel 316Ti Bow Shackle, Stainless Steel 316Ti Chain Link, SS 316Ti Chain, DIN 1.4571 D Shackles, SUS 316Ti Forgings Exporter in India.
SS 316Ti Twist Link Chains, Stainless Steel 316Ti Forgings Stockholder, Stainless Steel 316Ti D Shackles, Stainless Steel 316Ti Forgings Supplier, SS 316Ti Bow Shackle.
In this grade, titanium is added in small quantity that gives a stabilizing structure to stainless steel even at a temperature above 800 degrees C. when working with stainless steel 316 Ti at such temperature sensitization does not occur. Therefore, they are useful in paper mill equipment, heat exchangers and architectural components.
Also, the grade has similar mechanical and physical properties to 316. Therefore, they are suitable to work at elevated temperatures. Different products are manufactured using stainless steel 316 Ti on which forging can be done due to the great features of the steel.
Stainless Steel 316Ti Forgings Types
Stainless Steel 316Ti Chain
Stainless Steel 316Ti Chain Link
Stainless Steel 316Ti
D Shackle

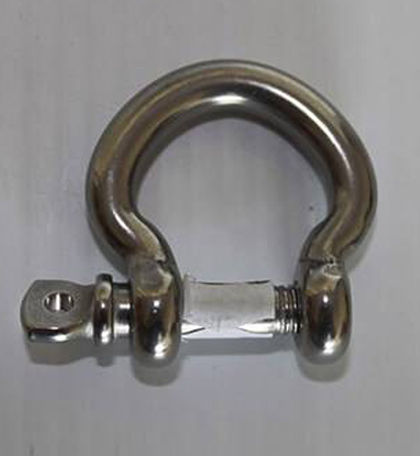

Stainless Steel 316Ti
Bow Shackle
Stainless Steel 316Ti Rolled Ring
Specification of SS 316Ti Forgings
| Standard : | ASTM A /SA 193 / 194 |
| Dimension : | ASTM, DIN, BS, GB, IS and all International Standards |
| Forged Between : | 2300/1700ºF (1260/930ºC) and air cooled |
| Severe Reductions : | Ingot breakdown, Roll forging, Drawing, Blocking and Backward extrusion - 2300ºF (1260ºC). |
| Moderate Reductions: | Finish forging and upsetting - 2200ºF (1200ºC). |
| Slight Reductions : | Coining, restriking and end upsetting - 2050ºF (1120º). |
| Type : | Chain Link, D Shackle, Bow Shackle etc. |
Other Properties of SS 316Ti Forgings
Equivalent Grades for SS 316Ti Forgings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17-123 | X6CrNiMoTi17-12-2 |
SS 316Ti Forgings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.395 min |
Mechanical Properties of SS 316Ti Forgings
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
People also search for DIN 1.4571 Forgings
SS 316ti bow shackle, stainless steel 316ti forgings distributors, ss 316ti forgings price, ss s31635 closed die forging, stainless steel din 1.4571 bow shackle, ss 316ti chain links suppliers in india, stainless steel 1.4571 seamless rolled rings, ss 316ti forgings products manufacturer in gujarat, 316ti stainless steel forgings dealer, din 1.4571 double loop chain, ss 316ti forgings suppliers in vadodara, ss 316ti forgings exporter, uns s31635 forgings products supplier in india, ss 1.4571 forged circles, ss s31635 d shackle with metric fine pitch, ss 316ti shafting & bars, ss 316ti crane hooks supplier, ss 316ti open die forging, astm a194 316ti ss forged discs, ss 316ti forged circles, ss 316ti chain links, a wide range of the stainless steel forgings price list, ss 316ti forgings suppiler in india, ss 316ti d shackles.
Other Stainless Steel 316Ti Forgings Types
Open Die Forging, Closed Die Forging, Seamless Rolled Ring, Forged Discs, Mandrel Rings, Shafting & Bars, Crane Hooks, Step Shafts, Forged Flat Bars, Forged Circles, Forged Circular Plates, Forged Hollow Bars, Anchor Shackle, Safety Chain Shackle, Bolt Chain Shackle, Single Jack Chain, Lifting Chain, Double Loop Chain, Special Bow Shackle w/ No-Snag Pin, Joining Shackle, Long Link Chain.
Quality Assurance of SS 316Ti Forgings
Stainless Steel 316Ti Forgings are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
